Textile Relays

Experimentation into using textile techniques to craft electromagnetic switches. How can this technically be realised? What aesthetic possibilities evolve from there?

Experimenting with electromagnets to explore the functionality that should be translated into textile patterns
neddle pin coil

Video: electromagnet around a needle pin

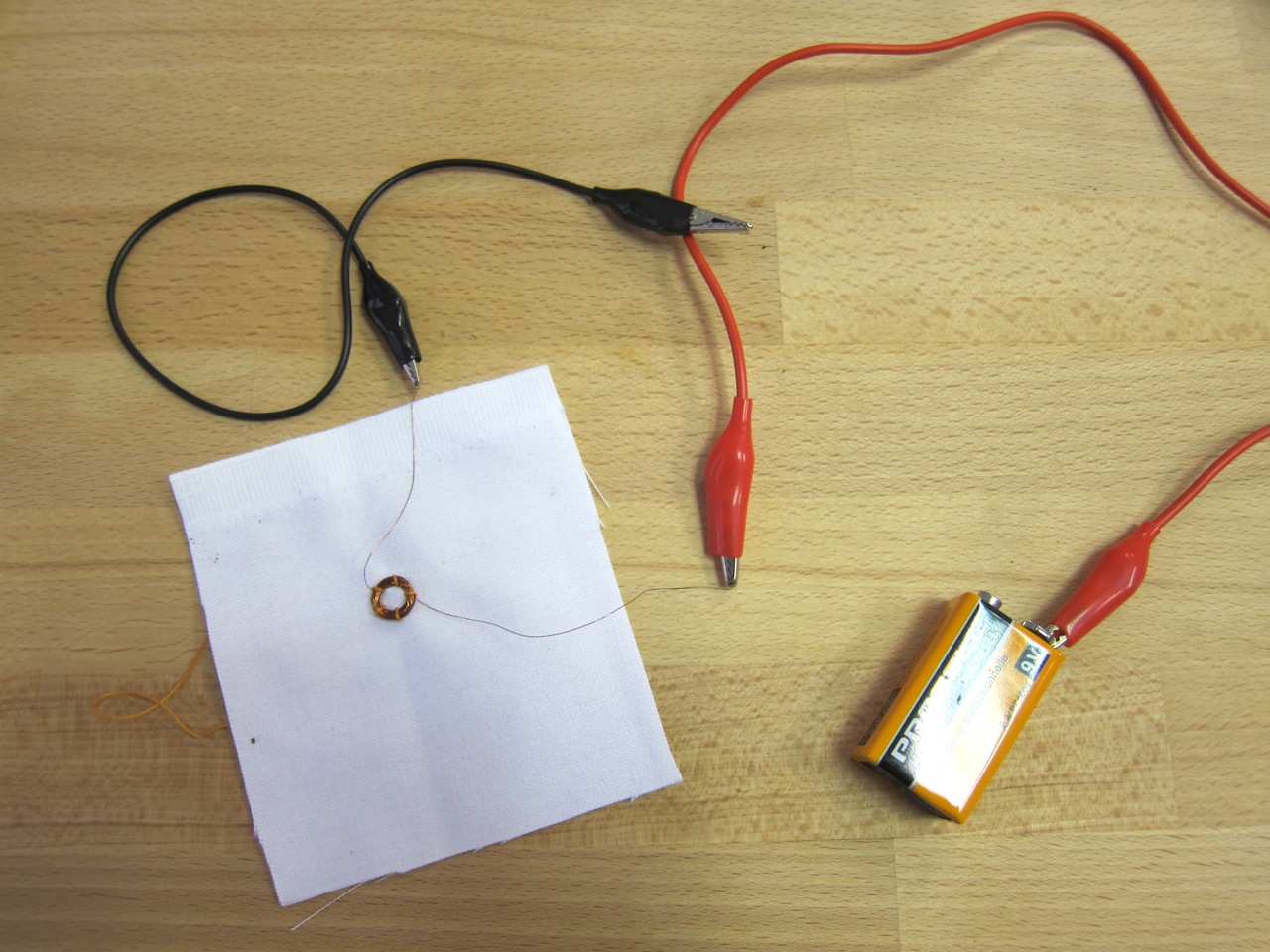

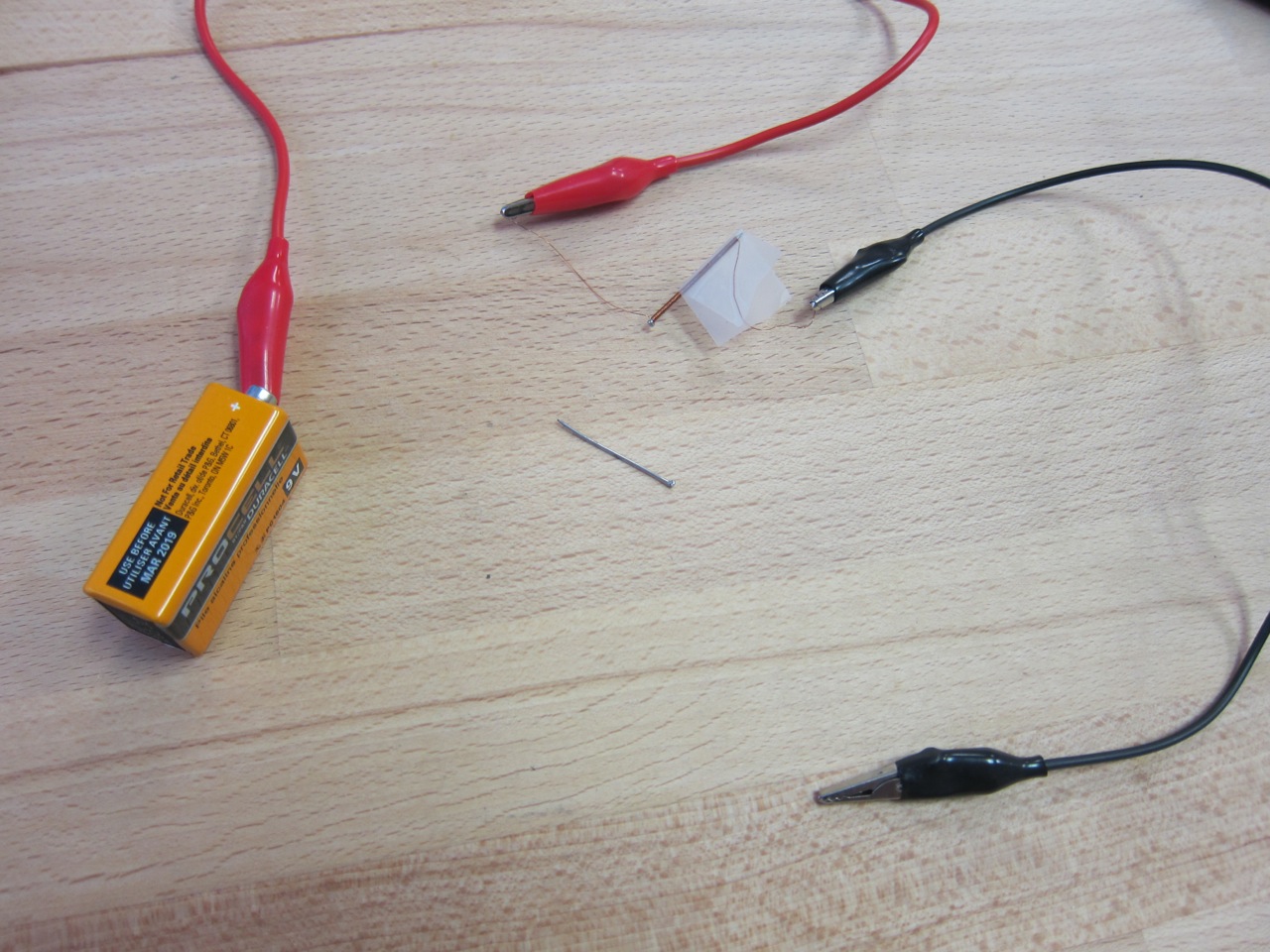

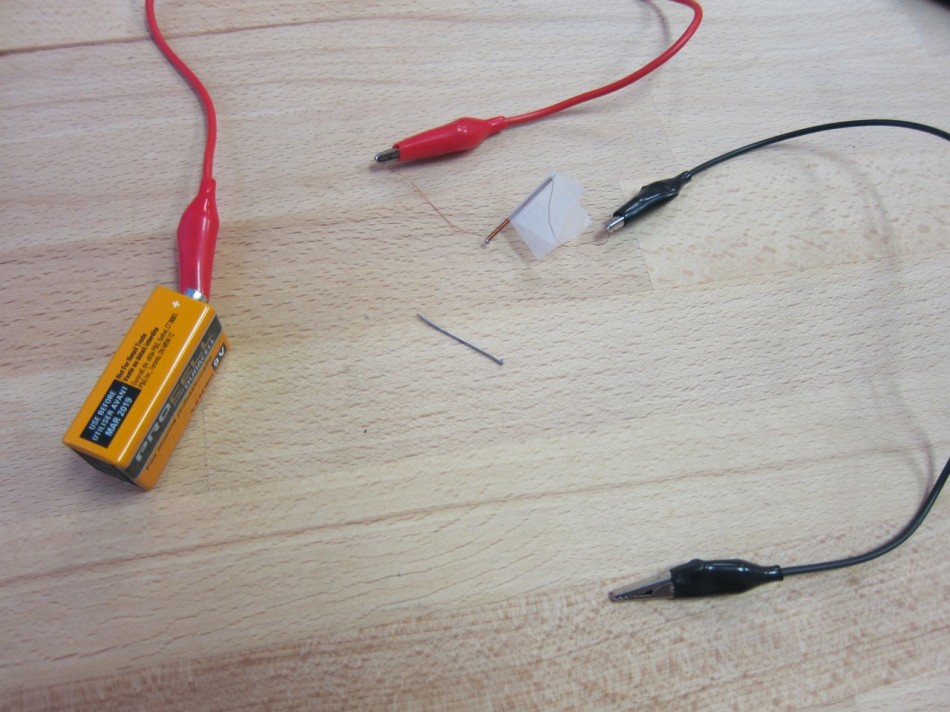

9V block battery powered coil: attracting metal objects, even stronger attraction can be reached when the object attracted is also magnetic

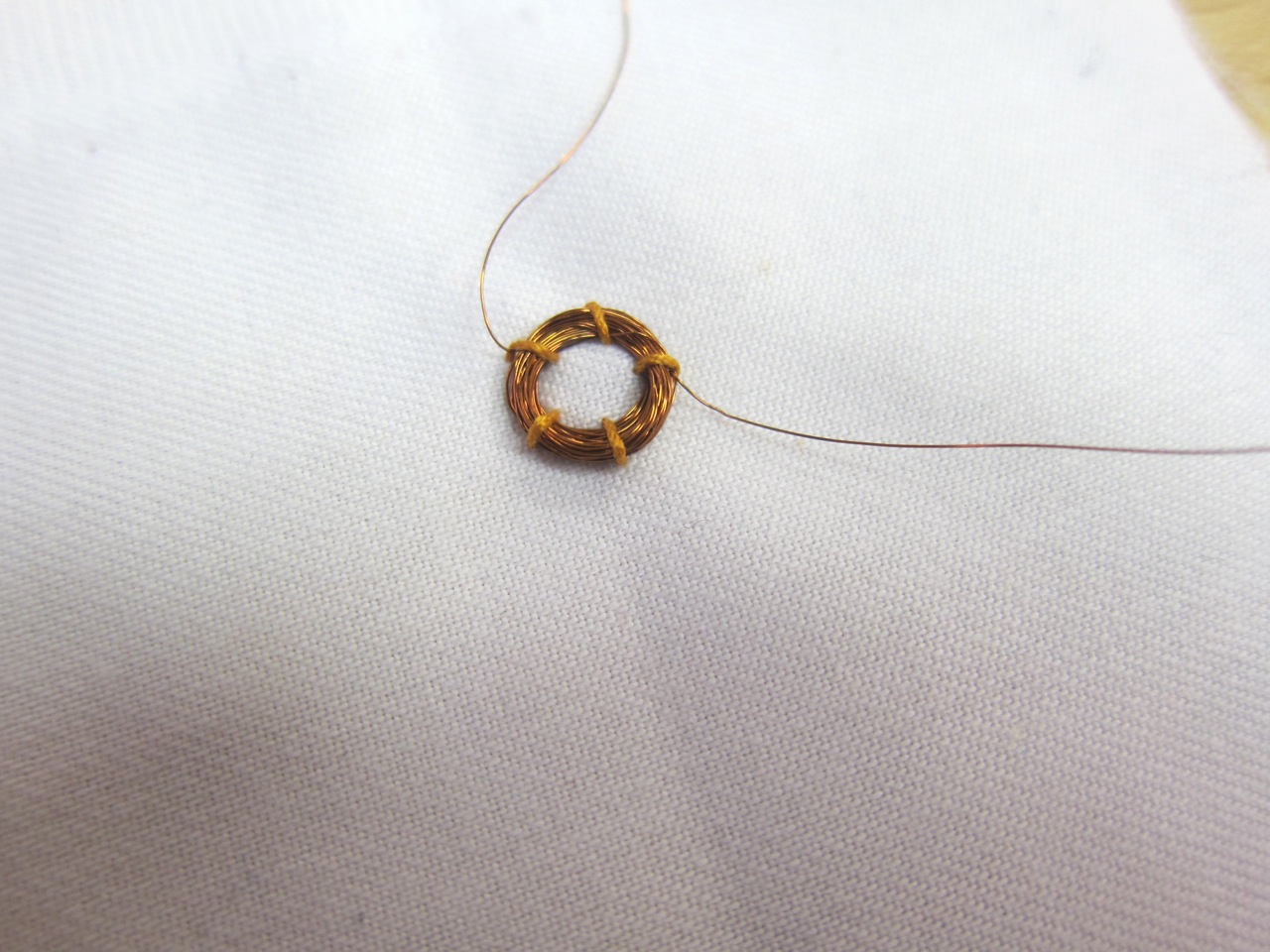

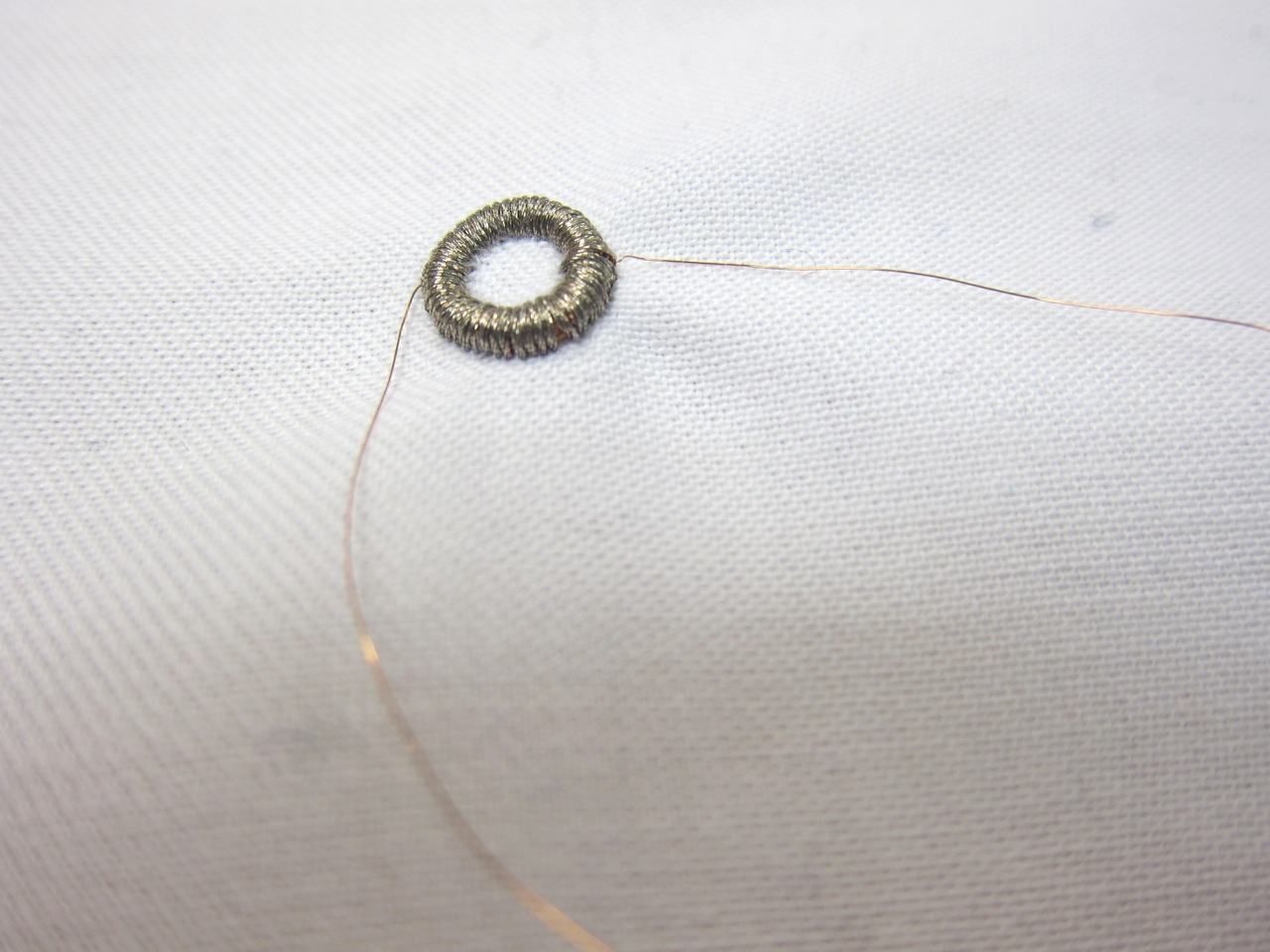

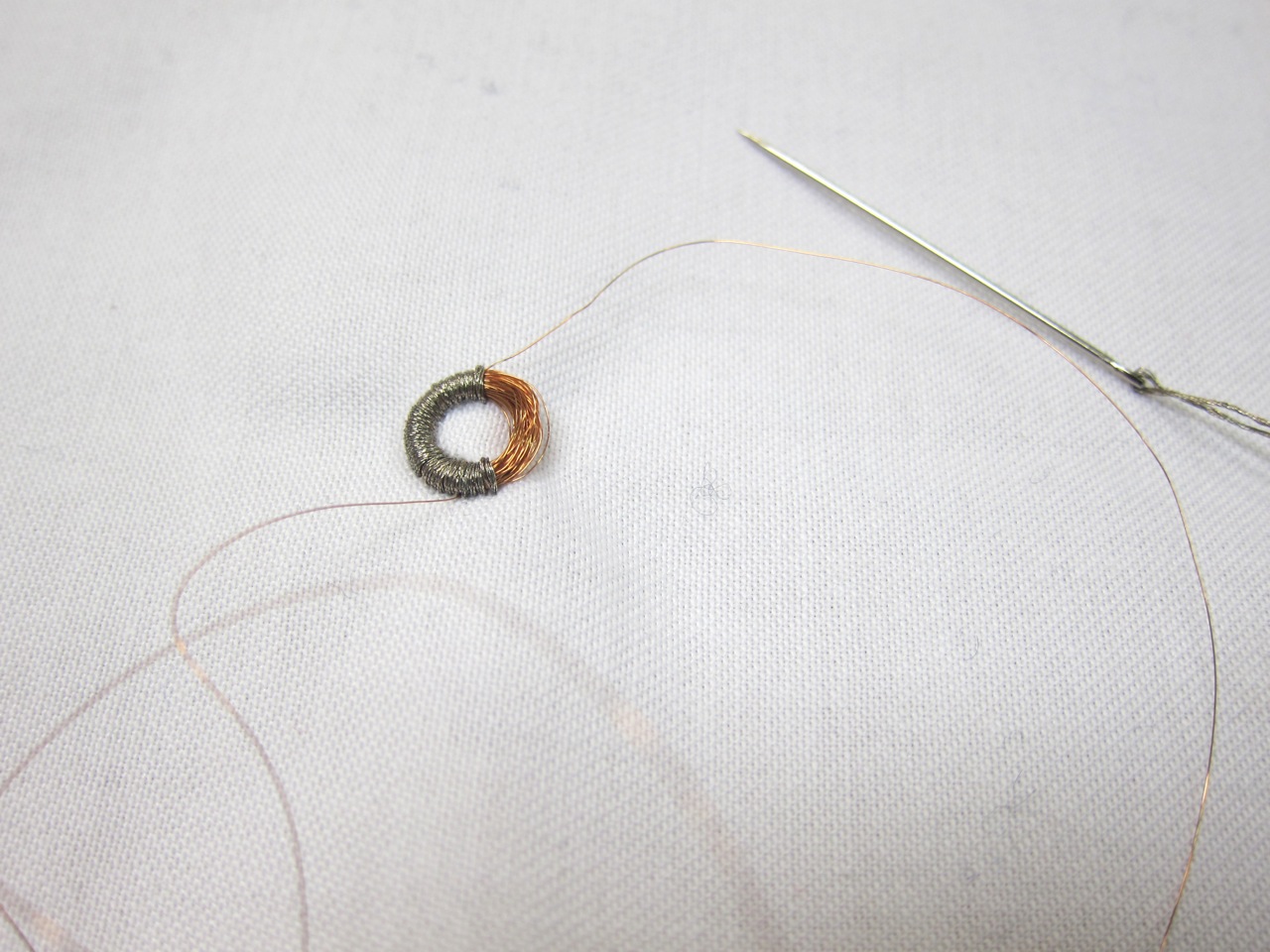

wound and mounted coil wound and mounted coil

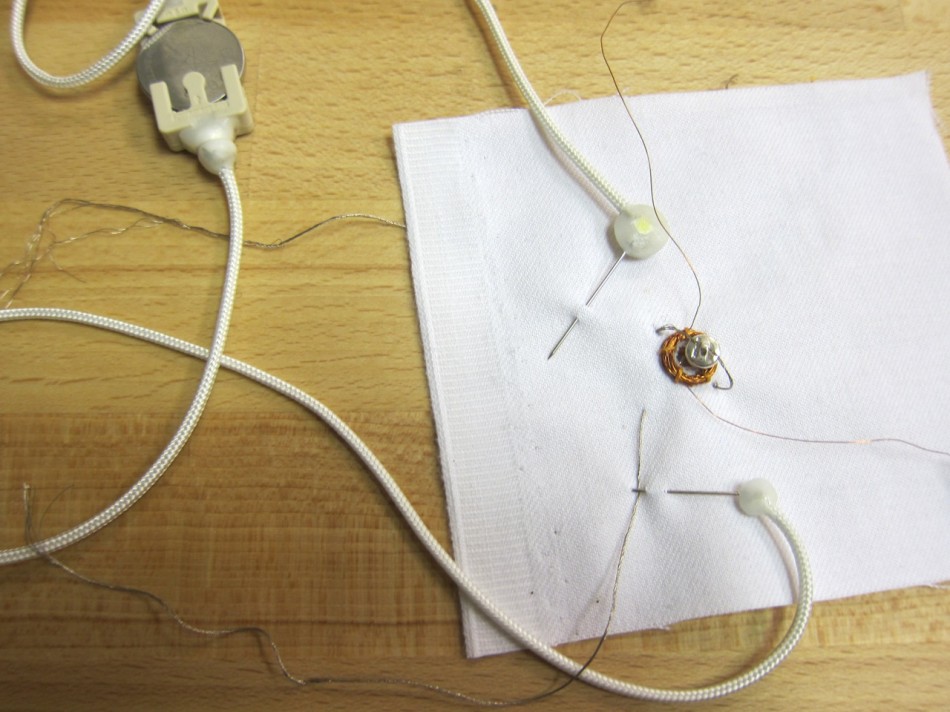

Testing closure and switching with magnetsmagnetic closure

Video: experiments with magnetic closure and coil
Video: metal piece moved by embroidered coil
Video: two coils and switching magnet
Video: vertical coil and crochet magnet

Exploiting the different polarisations of magnets to open and close a switch: The magnetic field induces by the electromagnet makes the bead turn according to its polarisation. Finding the “ideal” way, position and size for the bead to be mounted.

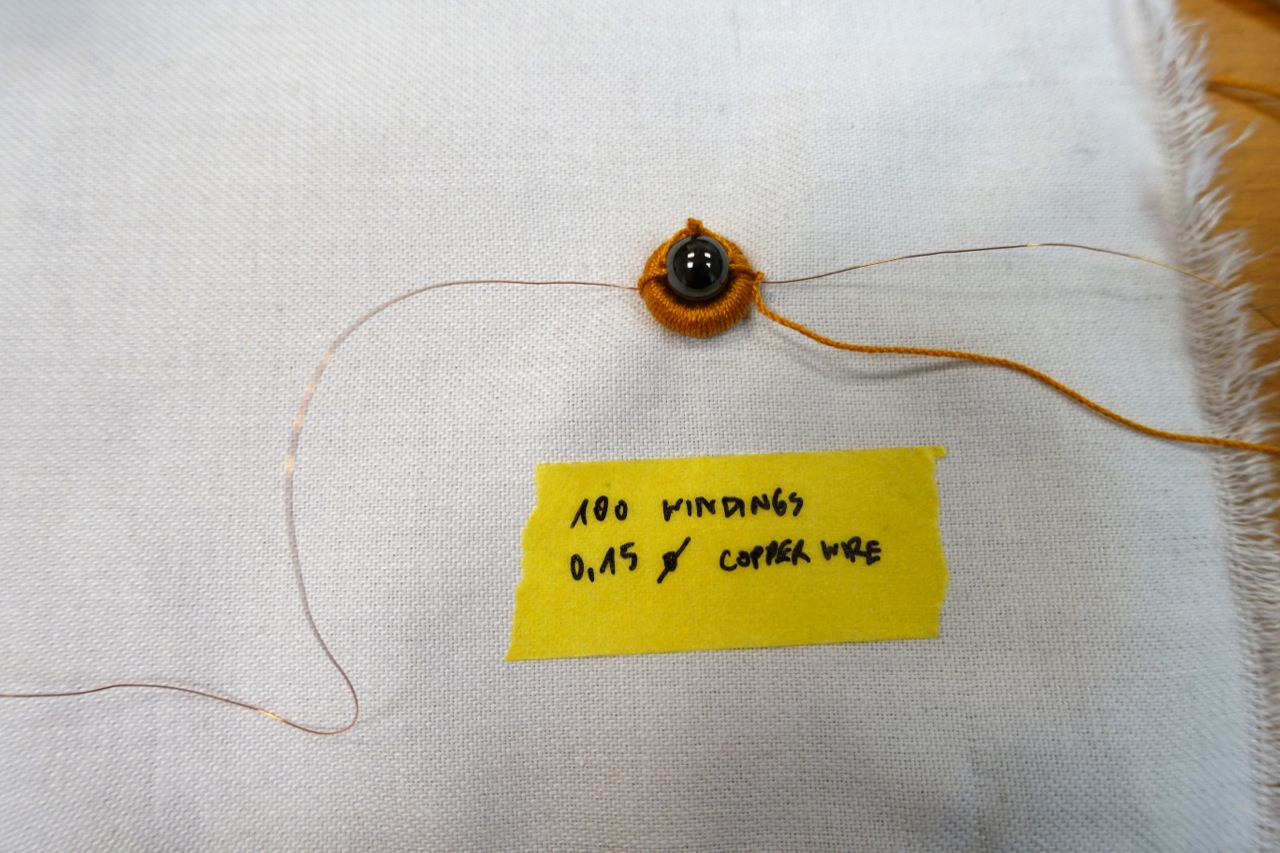

Testing with magenta beads (hematite beads)

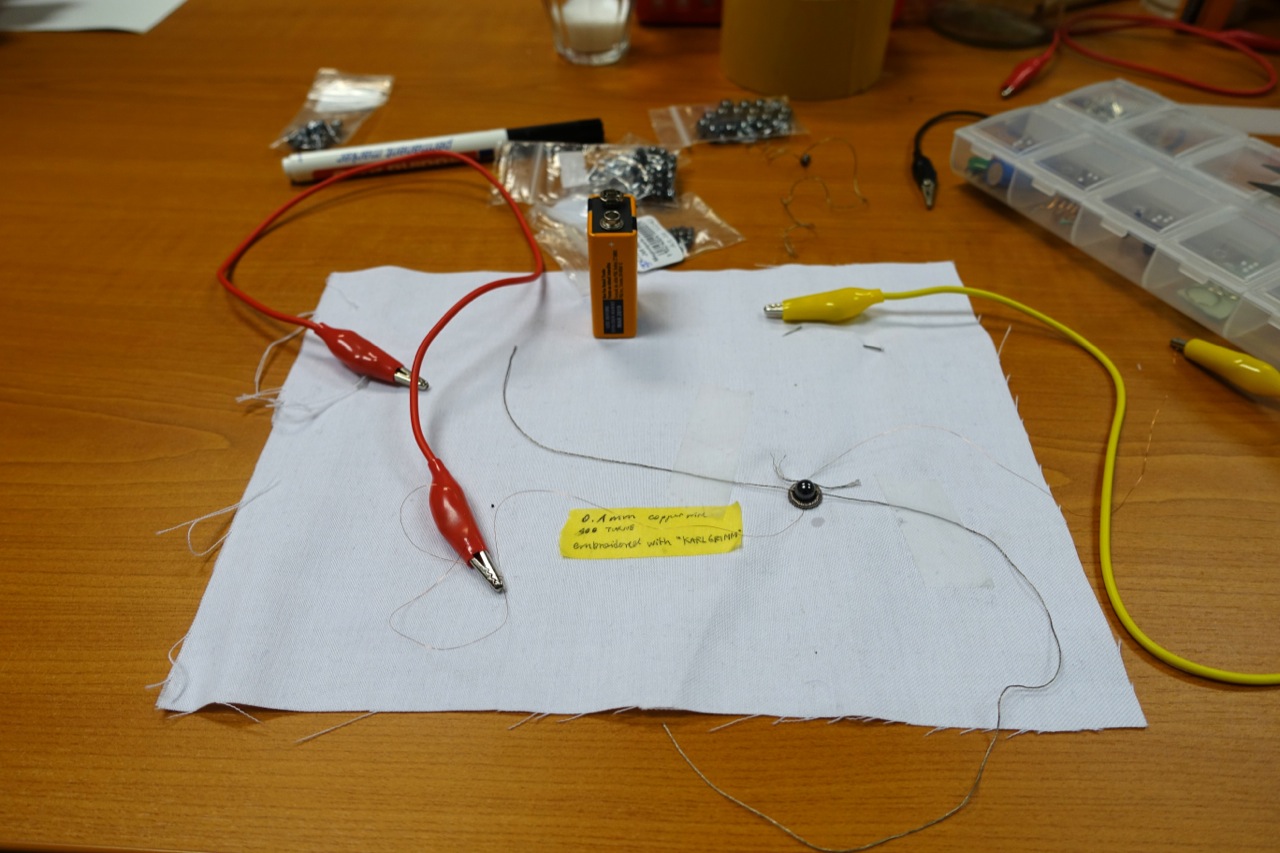

2015_01_17_coils_logic_gates_IMG_2330_w 2015_01_17_coils_logic_gates_IMG_2335_w 2015_01_17_coils_logic_gates_DSC00025_w 2015_01_17_coils_logic_gates_DSC00079_w

Video: magnetic bead on a string in the middle of the coil
Video: magnetic bead on a pin in the middle of the coil

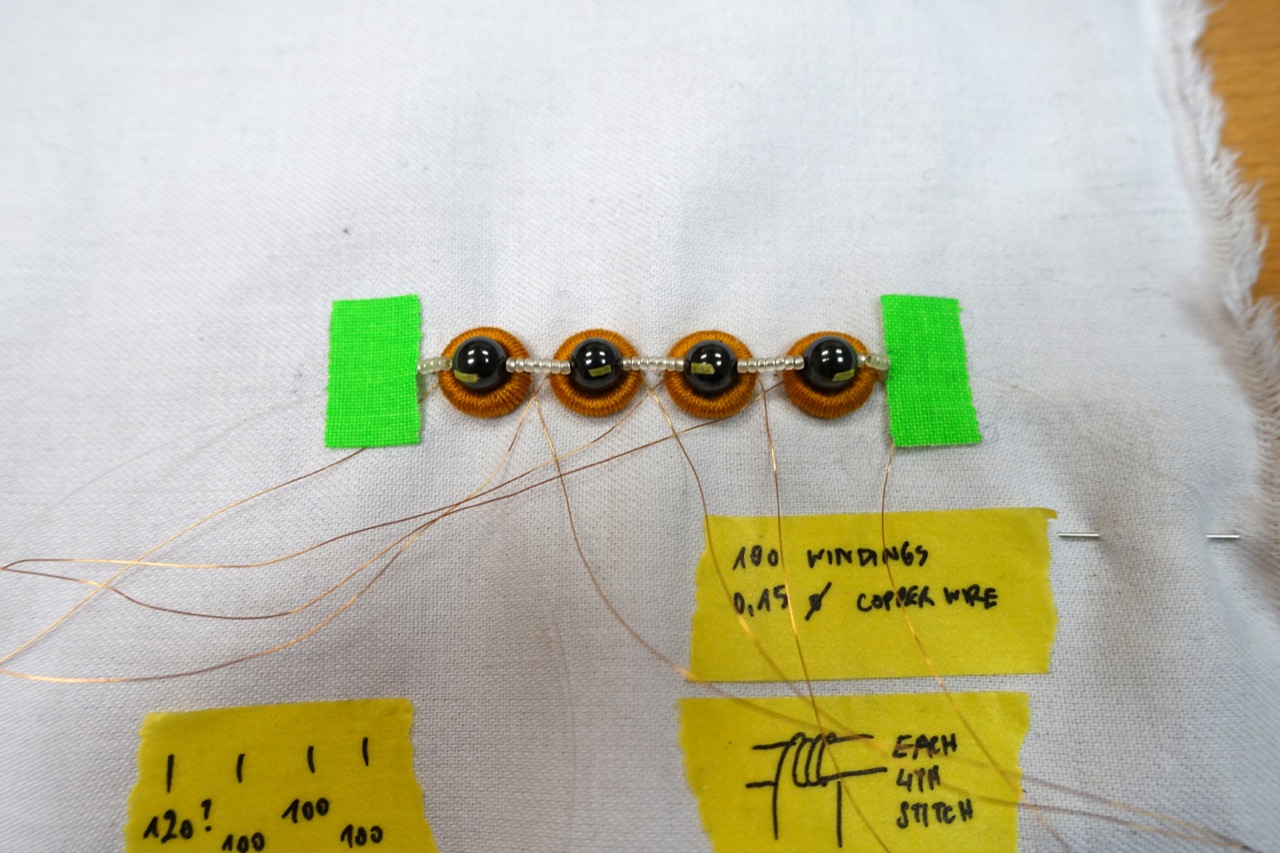

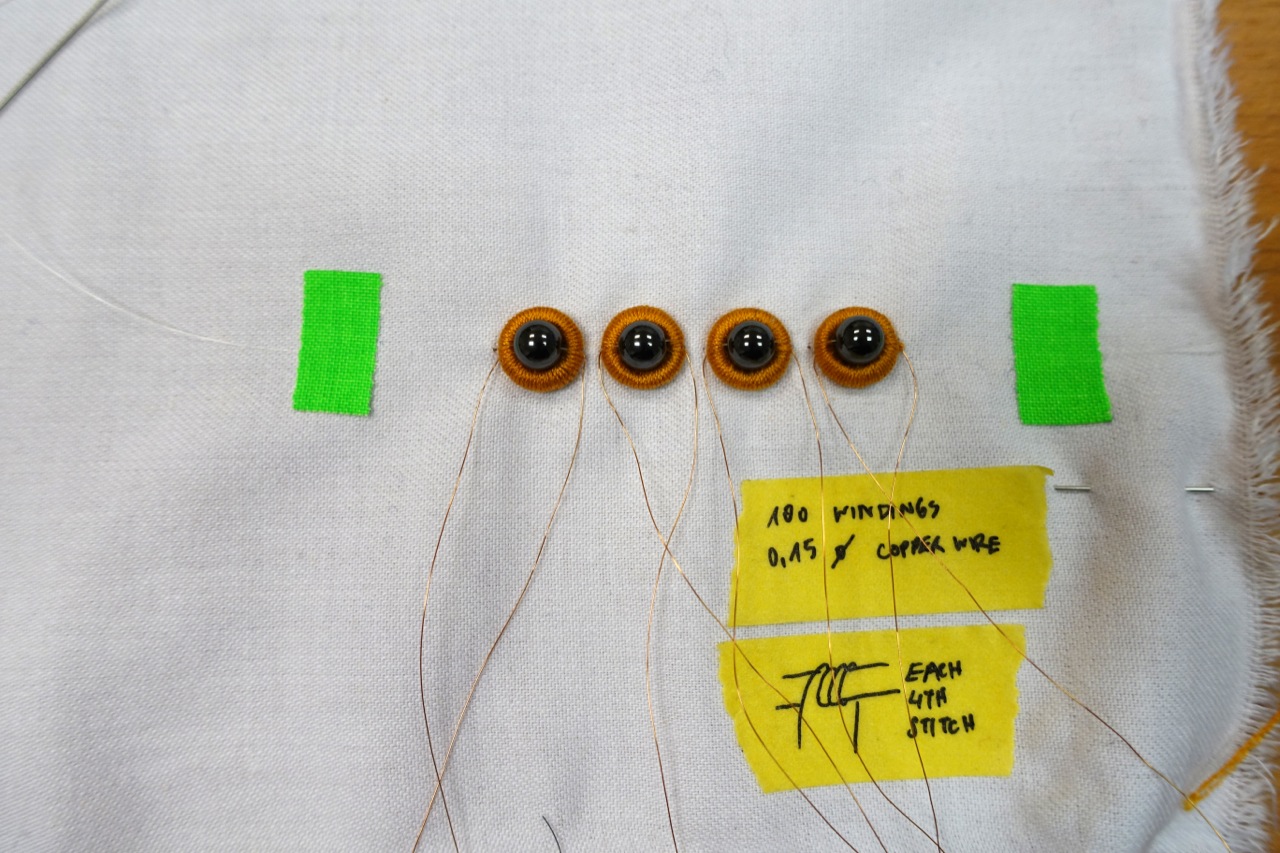

Testing the repeatability of that experiment: having 4 switches in a row
Input 0: south polarisation
Input 1: north polarisation

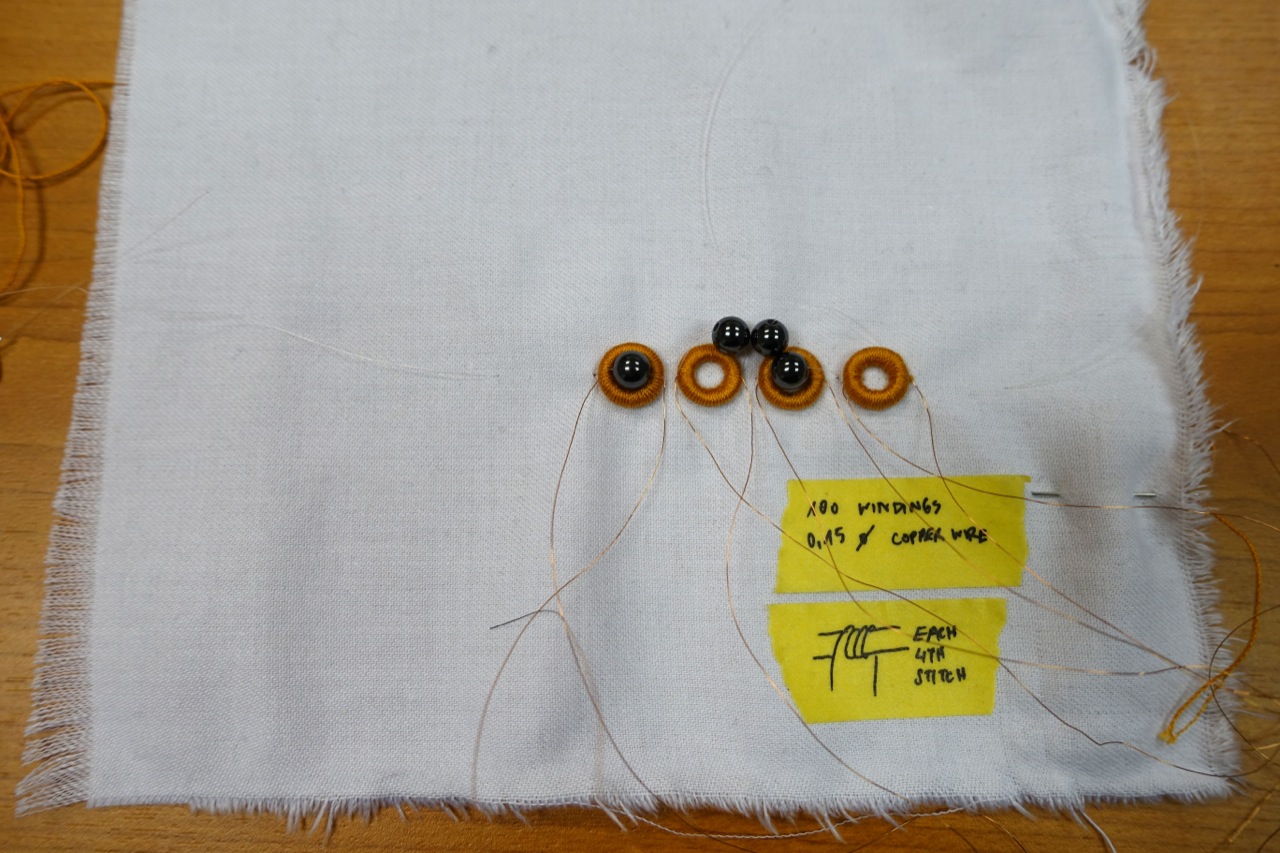

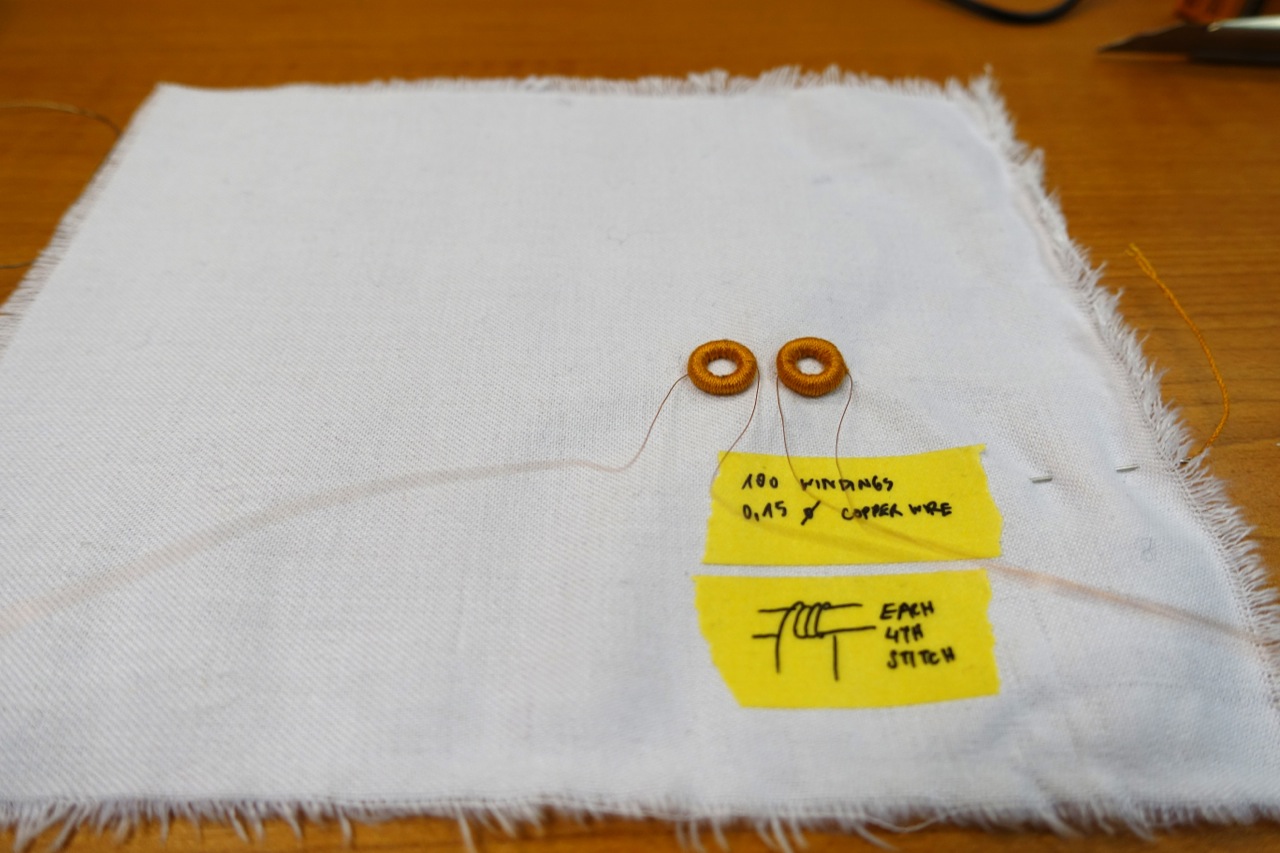

2015_01_17_coils_logic_gates_DSC00115_w2015_01_17_coils_logic_gates_DSC00089_w 2015_01_17_coils_logic_gates_DSC00095_w 2015_01_17_coils_logic_gates_DSC00111_w 2015_01_17_coils_logic_gates_DSC00132_w

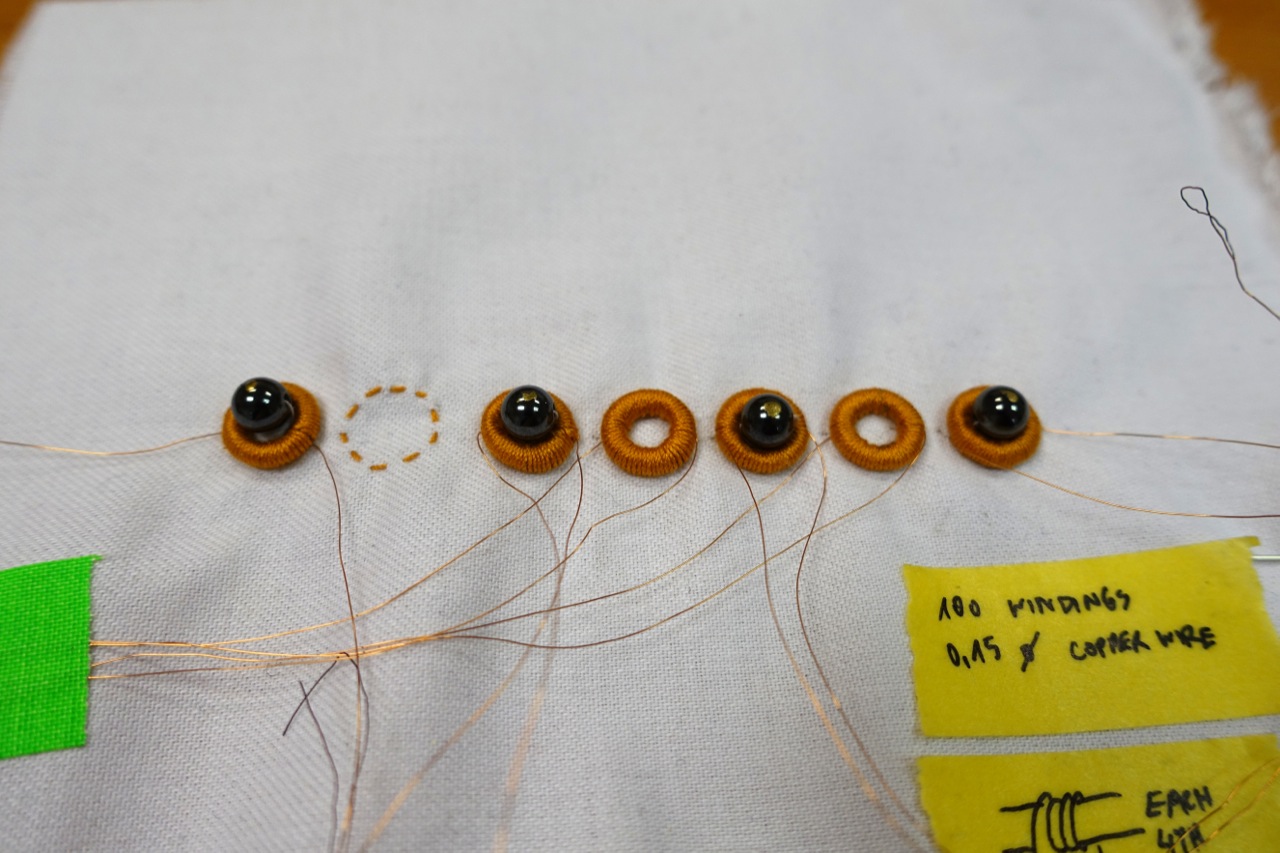

The magnetic beads need sufficient distance to each other in order to be controlled indiviually (marking shows which side of bead it up). It turns out that the beads we have are not all polarised exactly around the through hole axis, which creates a problem when we want to have controlled movement around the axis.

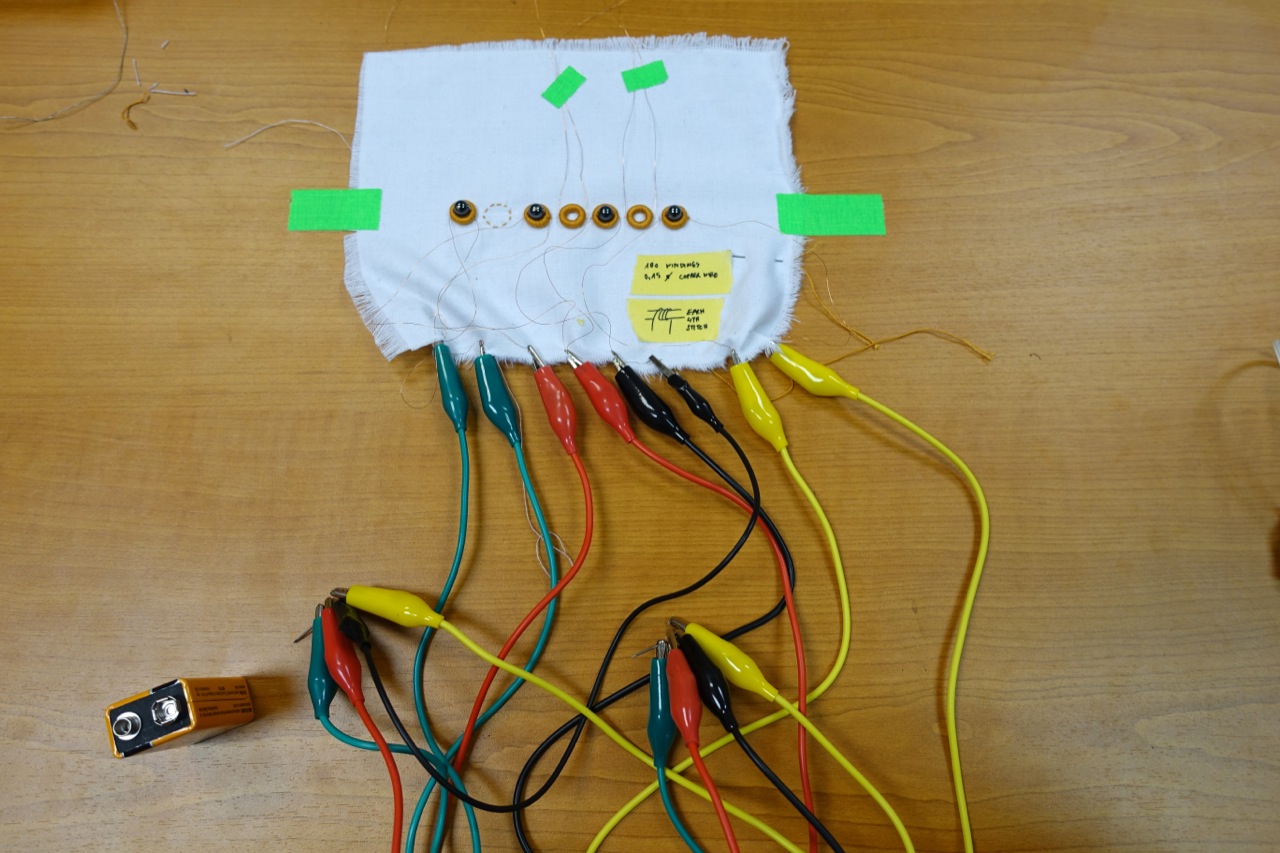

4 beads in a row with sufficient distance, addressed simultaneously: 2015_01_17_coils_logic_gates_DSC00144_w

Bead with conductive paint on north polarised side to close a contact when switched.


The beads turn on the magnetic impulse, but obviously do not turn back automatically but stay in the position until a the polarisation of the electromagnetic coil is changed.

Testing automatic pullback in putting a small magnet underneath the bead. The magnets force is overwritten by the active electromagnet, but has enough strength to pull the magnetic bead back in its original position ((S-015-01-N2-Ni magnet, 0,01g underneath the flipping pearl):

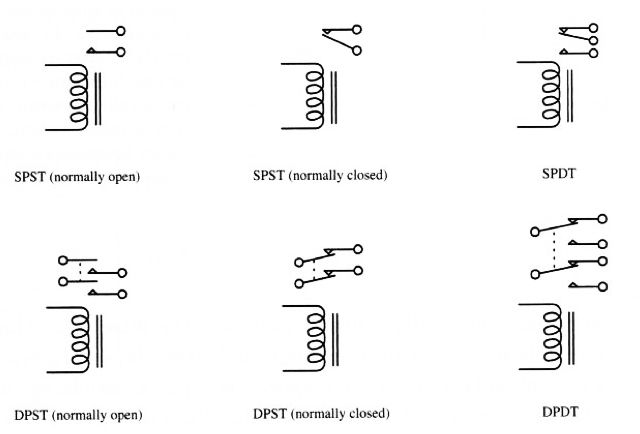

Relays are electrically actuated switches. […] For a typical mechanical relay, a current sent through a coil magnet acts to pull a flexible, spring-loaded conductive plate from one switch contact to another. (Scherz 2007)


This research forms the basis for future investigations into crafting textile actuators, to create display elements, storage elements and moving elements.


Scherz, P. 2007. Practical Electronics for Inventors. 2nd ed. New York: McGraw-Hill.
