1-BIT TEXTILE for the eTextile Swatch Exchange 2015

The E-Textile Summercamp‘s Swatchbook Exchange is a platform for sharing physical work samples in the field of electronic textiles. The exchange wishes to emphasize the importance of physicality and quality workmanship in an increasingly digital world.



1-Bit Textile

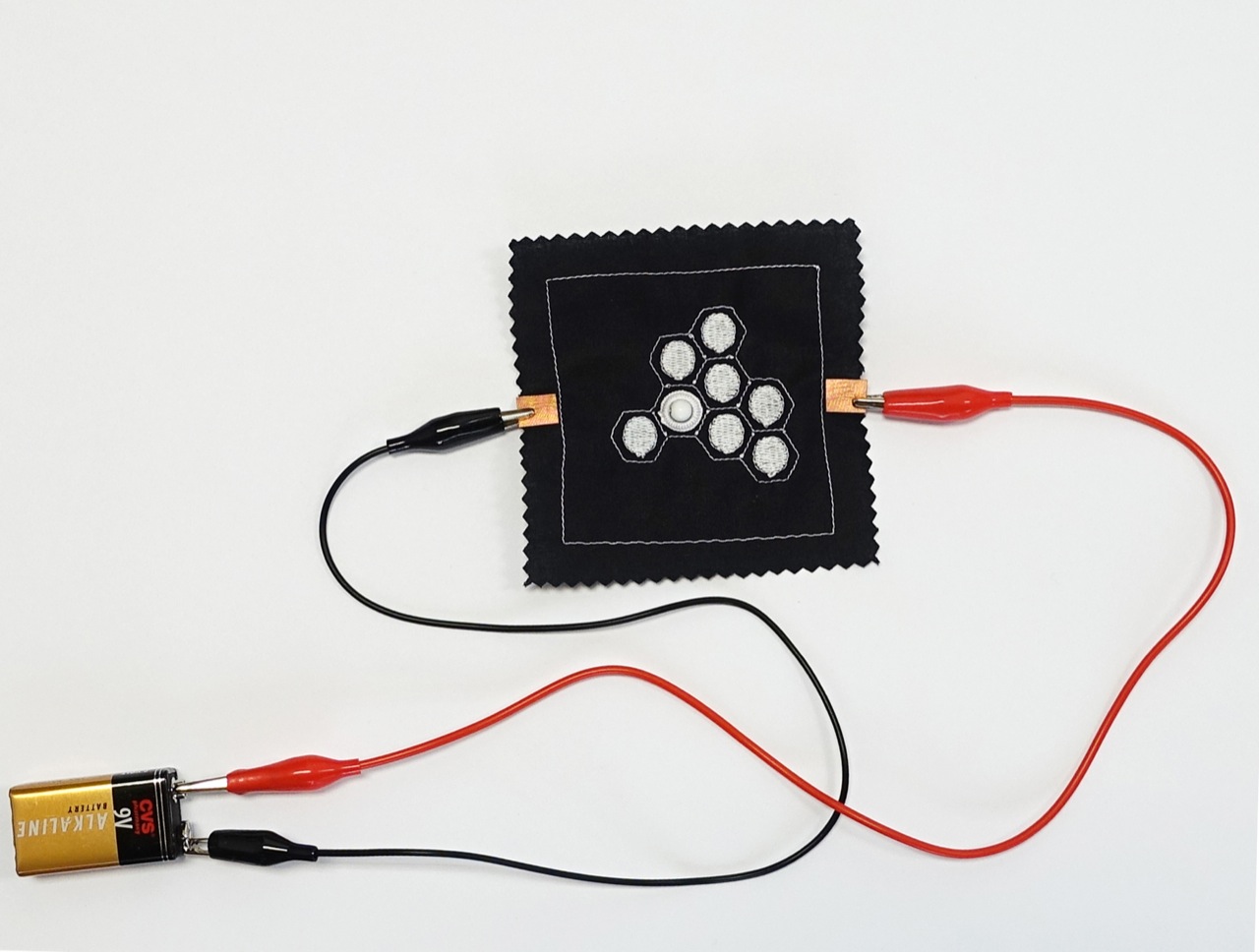

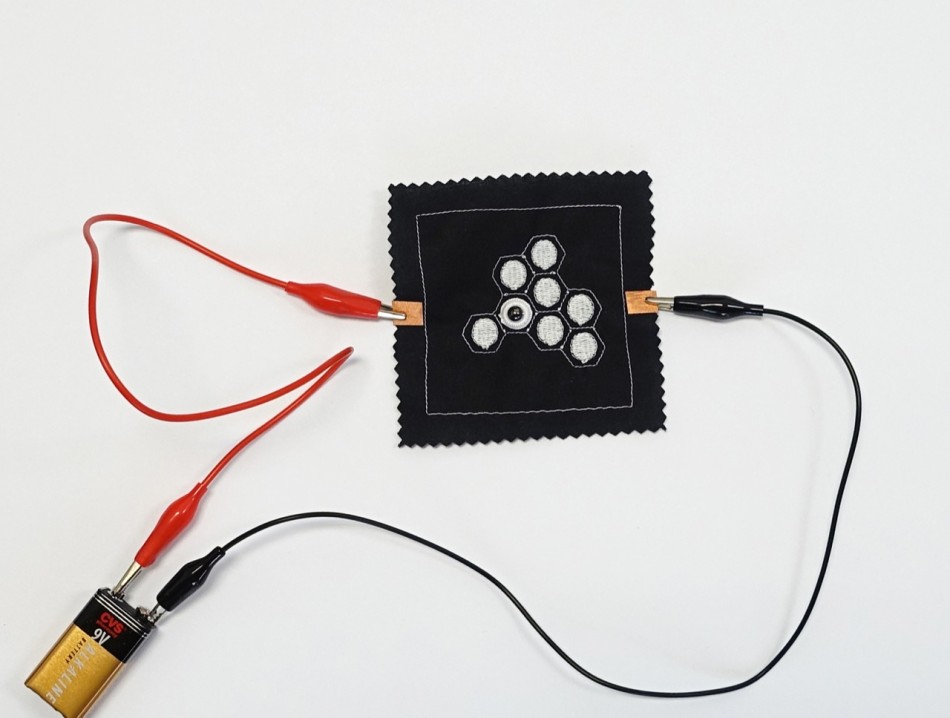

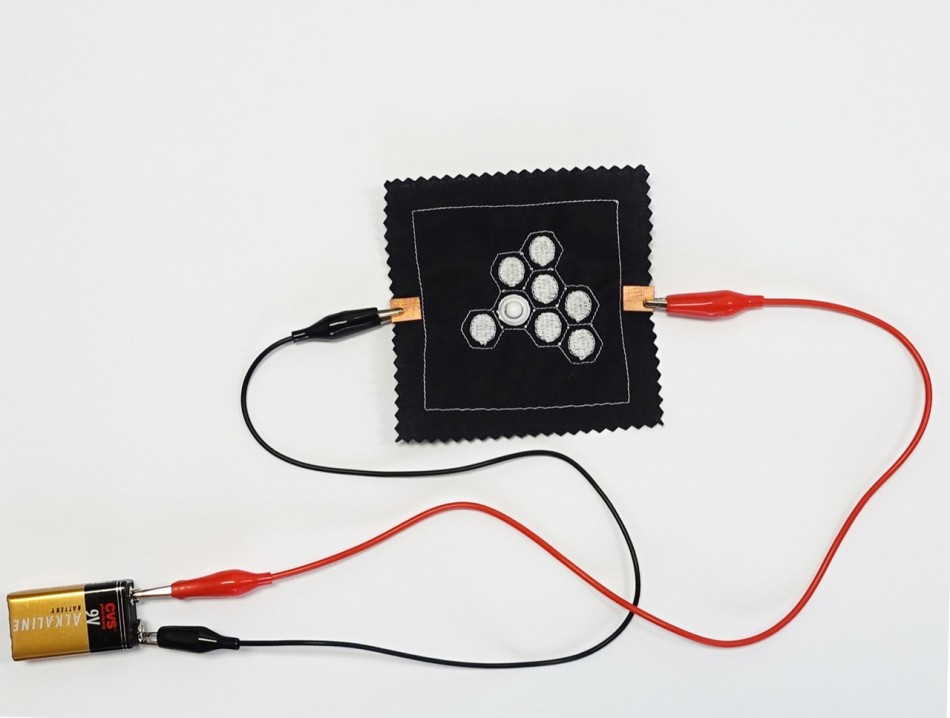

This swatch shows an embroidered textile bit. The bit can be controlled electromagnetically. In applying power, e.g. switching the electromagnetic field created in the coil, the magnetic bead can be flipped. The creation of the 1-Bit Textile is part of a bigger research into creating electronic components from scratch though textile routines. The research forms the basis for future investigations into crafting textile actuators, to create display elements, storage elements, relays and other moving elements.

Materials: fabric, yarn, magnetic bead, paint, copper wire

Techniques: embroidery

Dimensions: 10 x 10cm

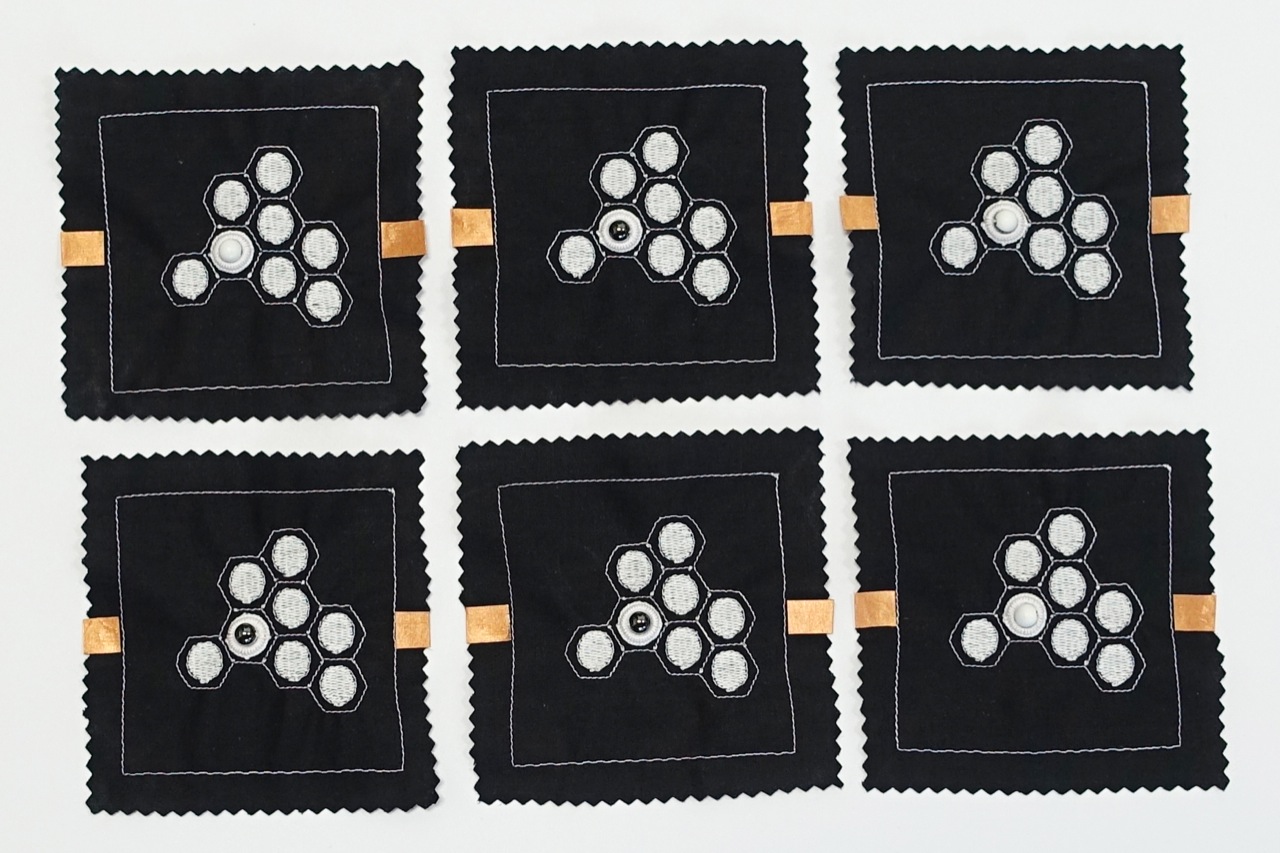

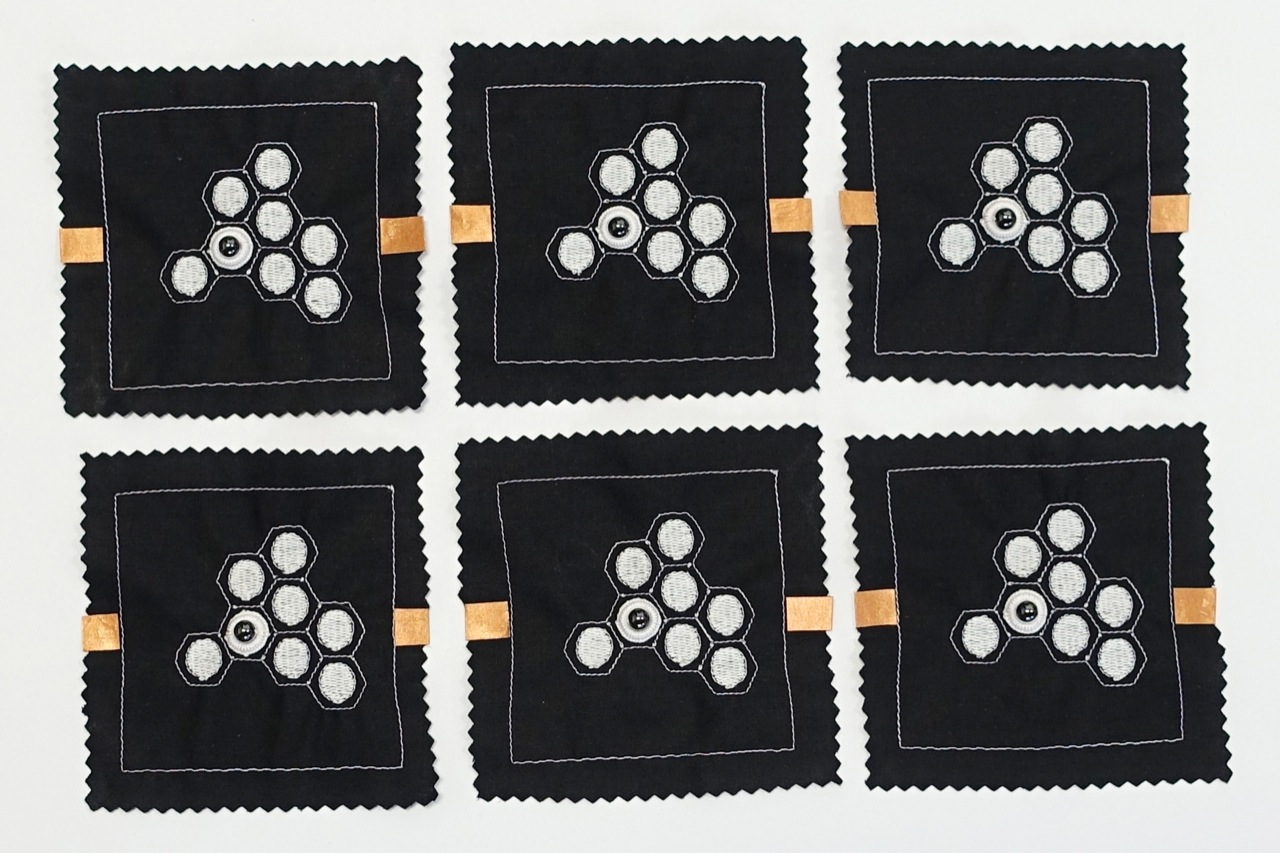

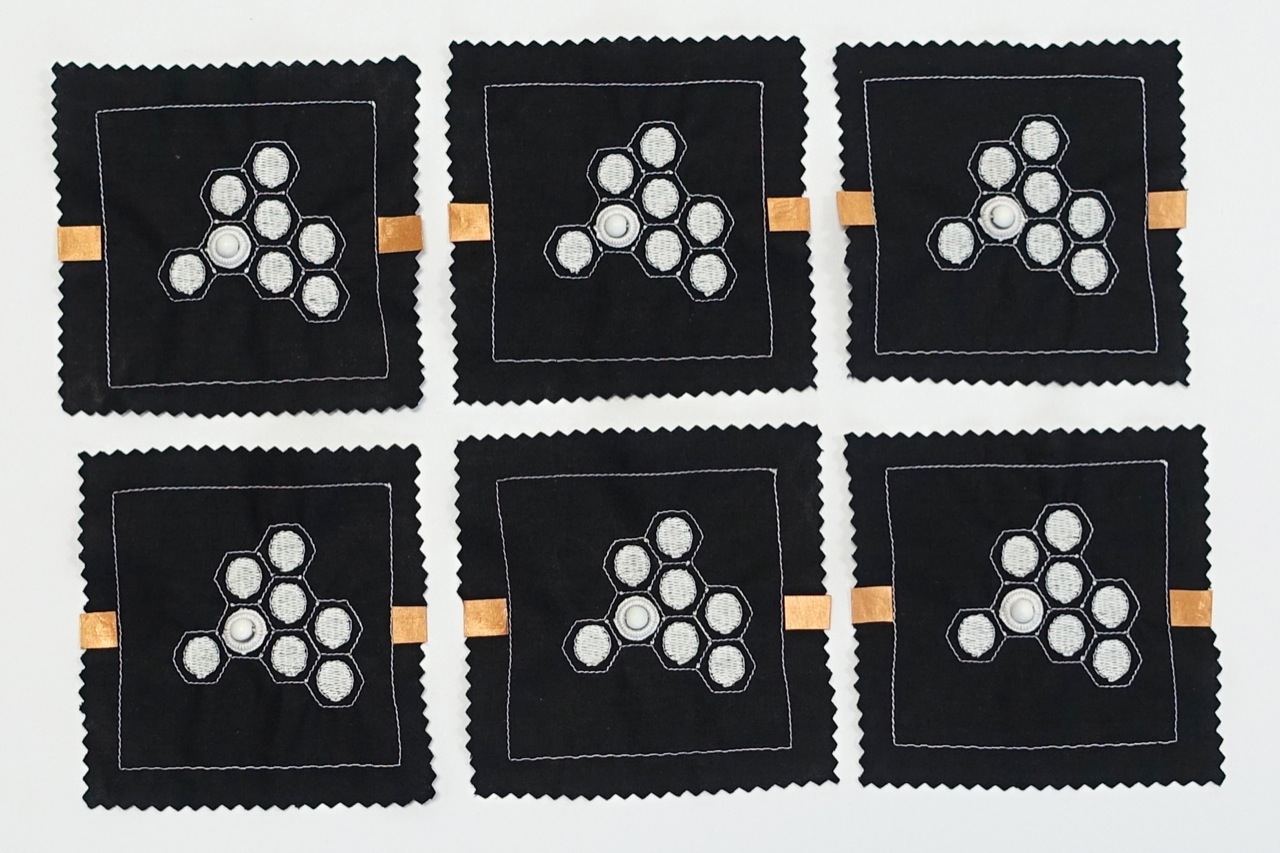

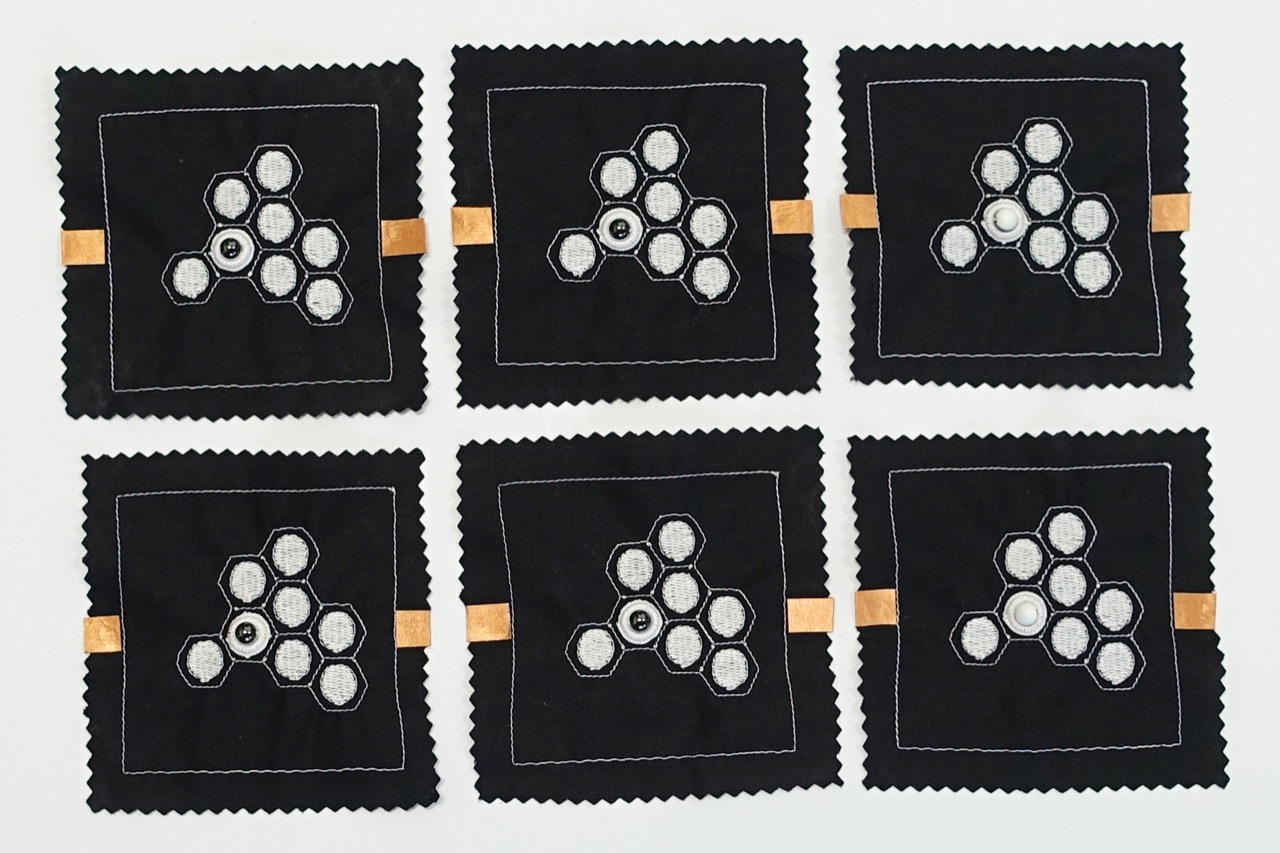

1 Bit Textile1 Bit Textile



1 Bit Textile 1 Bit Textile 1 Bit Textile 1 Bit Textile

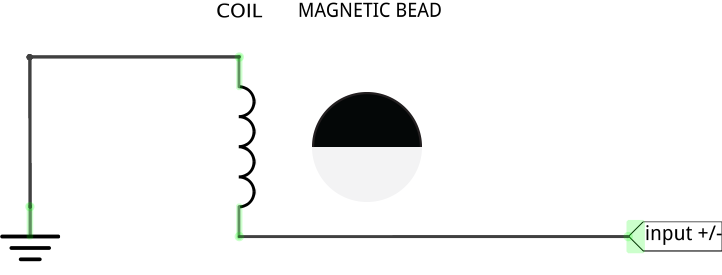

sketch_1_bit_schem

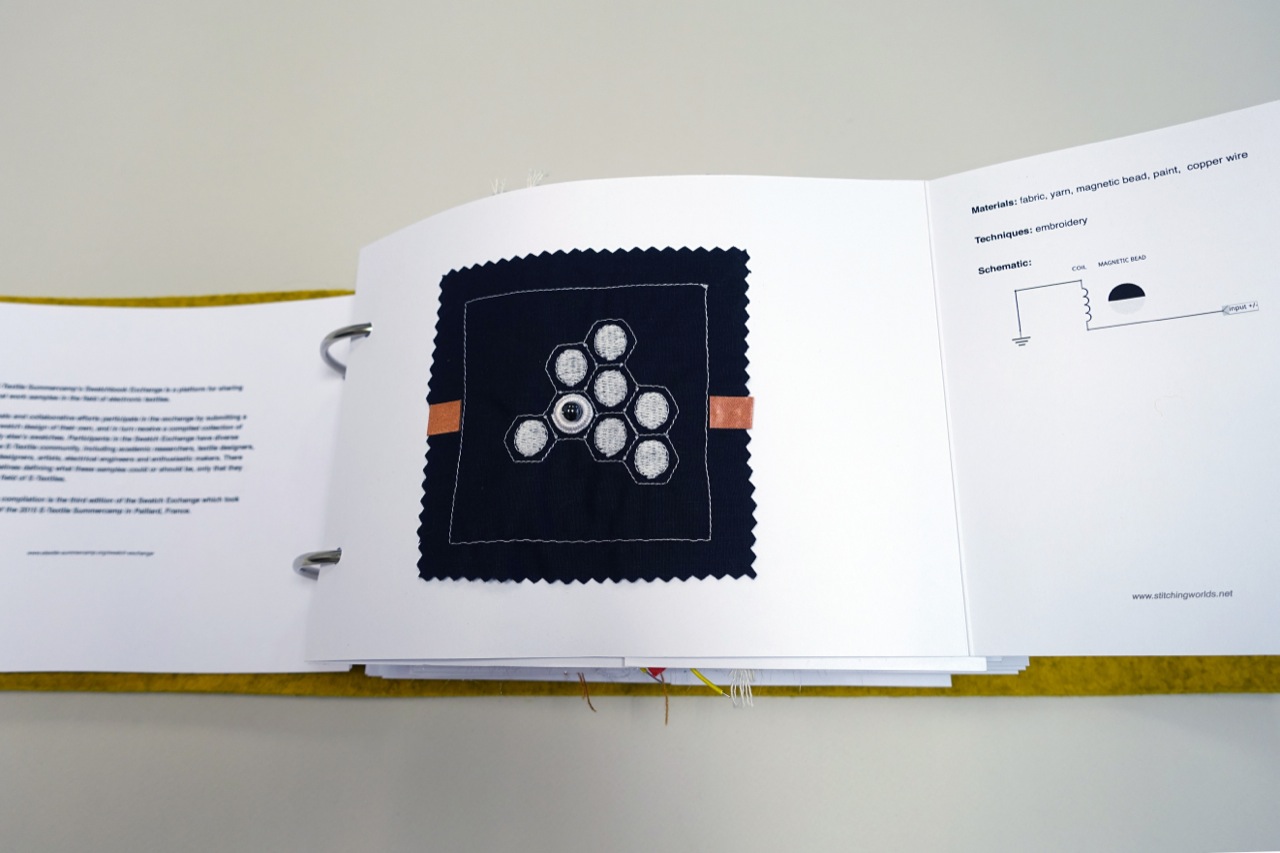

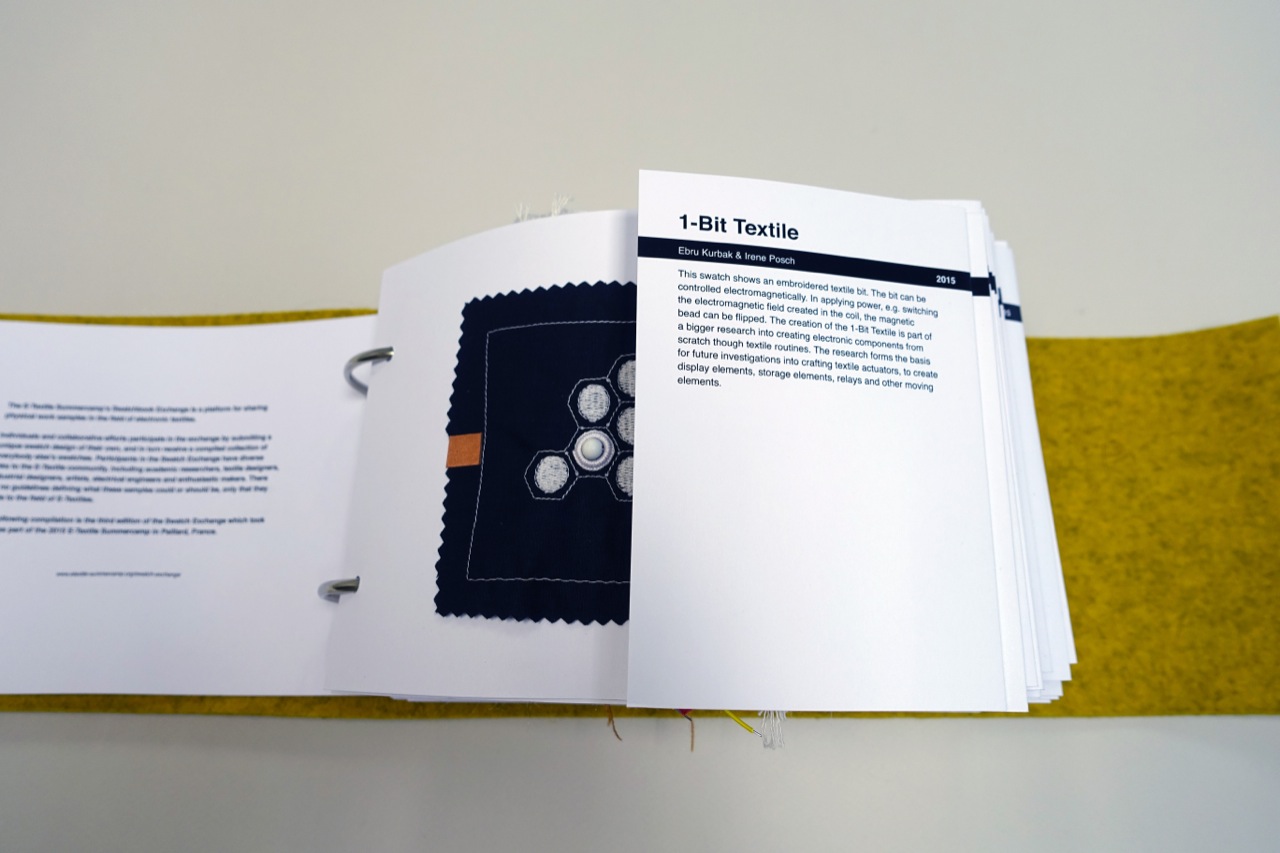

In the Swatchbook 2015:

1-Bit Textile

Swatchbook 2015 Swatchbook 2015 Swatchbook 2015

Swatchbook 2015 2015_07_01_Swatchbook2015_DSC02259_w 2015_07_01_Swatchbook2015_DSC02260_w Swatchbook 2015
